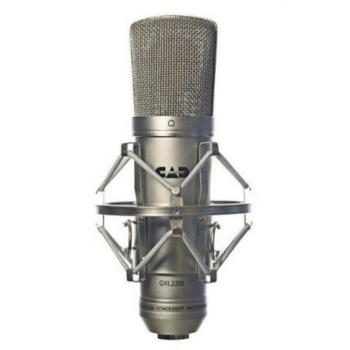

GXL Series Large Diaphragm Car

The condenser microphone consists of a thin conductive membrane stretched very close to a stationary plate. High voltage is applied between the membrane and the plate. As the membrane vibrates, electrons move. These moving electrons are sensed as voltage. This voltage can be strengthened (but not necessarily increased) by silicon. The GXL2200 is inspired cosmetically, mechanically, and electrically by early generations of European masters. Features include (but are not limited to) an internal hi-pass filter. Elastic shock mount and protective pouch are included. P48 (48V) phantom power is required.

Operating Principle: Externally-biased condenser
Polar Pattern: Cardioid
Frequency Response: 30Hz to 20KHz
Sensitivity: -36dBV (16mV) @ 1 Pa
Impedance: 75 ohms
Max SPL: 130dB, 1% THD
Self Noise: 20dBA
Power Requirements: P48, 3mA

Features

• Inspired by early generations of European masters • Internal hi-pass filter

• Ideal for Studio Vocals, Voice-over, Choir, Acoustic Instrument, Strings, Piano, Cymbals/Overheads • Elastic shock mount and protective pouch included
