35 Watt Three Input Mixer Ampl
Roll over or click to zoom in

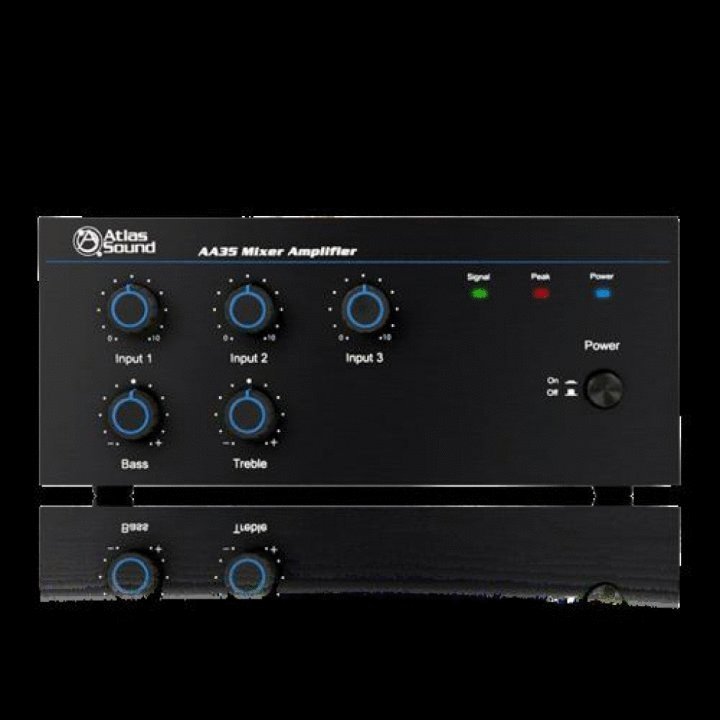

The Atlas Sound AA35, a 3 input channel mixer amplifier designed for distributed business paging and background music (BGM) systems, small to medium speech privacy systems and in applications where music on hold (MOH) plus paging is required.
Height: 3 11/16" (9.2964 cm)
Width: 8 1/4" (21.0058 cm)
Depth: 10 7/8" (27.6098 cm)
Shipping Weight: 10.20 lbs (4.63 kgs)
Frequency Response: 50Hz-20kHz ±3dB
Connector Type: Phoenix and RCA
Output Power: 35 Watts
Rack Spaces: 2 high 1/2 wide
UL Listed/Standard: 60065-ROHS 2006 Compliant
Features
1 Mic in w/phantom power 2 Stereo line inputs 35 Watts of true output power Dual line outputs | | Pre Out/ Power in patch Remote and VOX activated Mute Route any source combination or entire mix bus to Zone 2 (MOH Out) Special Low Cut filter is 6dBu / octave at 400Hz and also bypasses front panel bass control to allow use with paging horns like APX40TN and AP-15T |
