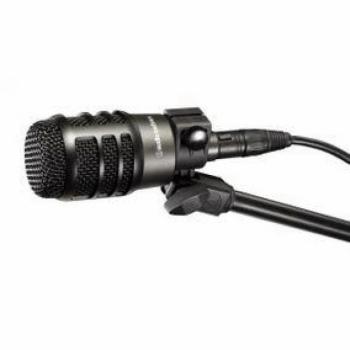

Hypercardioid Dynamic Instrume
Model: ATM250
A natural with high SPLs, the ATM250 hypercardioid dynamic is tailored for kick drum, percussion, brass and other highly dynamic instruments. Its rich, warm low-frequency response gives the microphone excellent presence. The microphone is equipped with a rare earth neodymium magnet and a tight hypercardioid polar pattern. Includes a professional isolation clamp to provide secure mounting, versatile positioning and effective dampening of unwanted mechanical noise.
ELEMENT: Dynamic
POLAR PATTERN: Hypercardioid
FREQUENCY RESPONSE: 40-15,000 Hz
OPEN CIRCUIT SENSITIVITY: –54 dB (1.9 mV) re 1V at 1 Pa
IMPEDANCE: 600 ohms
WEIGHT: 252 g (8.9 oz)
DIMENSIONS: 127.5 mm (5.02") long,
55.0 mm (2.17") diameter
OUTPUT CONNECTOR: Integral 3-pin XLRM-type
ACCESSORIES FURNISHED: AT8471 isolation clamp for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; soft protective pouch MORE»
| List | $199.00 |

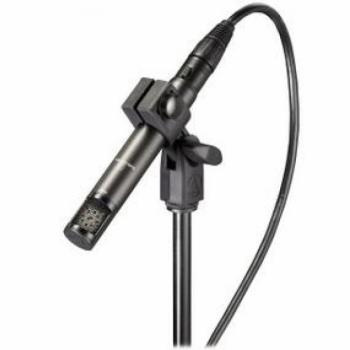

Side-Address Cardioid Condense
Model: ATM450
One of the new stars of the Artist Series remake, the ATM450 cardioid condenser offers an innovative side-address stick design for endless placement options and minimal obstructions. The microphone is equipped with an integral 80 Hz hi-pass filter that provides easy switching from a flat frequency response to a low-end roll-off. The ATM450 also features a switchable 10 dB pad that lowers the microphone's sensitivity, providing higher SPL capability for flexible use with a wide range of performers and system configurations. The microphone’s extended flat frequency response makes it ideal for high SPLs as well as for live and amplified acoustic instruments. Includes a professional isolation clamp to provide secure mounting, versatile positioning and effective dampening of unwanted mechanical noise.
ELEMENT Fixed-charge back plate permanently polarized condenser
POLAR PATTERN Cardioid
FREQUENCY RESPONSE 40-20,000 Hz
LOW FREQUENCY ROLL-OFF 80 Hz, 18 dB/octave
OPEN CIRCUIT SENSITIVITY –41 dB (8.9 mV) re 1V at 1 Pa
IMPEDANCE 200 ohms
MAXIMUM INPUT SOUND LEVEL 152 dB SPL, 1 kHz at 1% T.H.D.
DYNAMIC RANGE (typical) 127 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO 69 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS 11-52V DC, 3.5 mA typical
SWITCHES Flat, roll-off; 10 dB pad
WEIGHT 98 g (3.5 oz)
DIMENSIONS 126.9 mm (5.00") long,
21.0 mm (0.83") diameter
OUTPUT CONNECTOR Integral 3-pin XLRM-type
ACCESSORIES FURNISHED AT8471 isolation clamp for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; windscreen; soft protective pouchELEMENT Fixed-charge back plate permanently polarized condenser
MORE»
| List | $279.00 |
Artist Series Cardioid Dynamic
Model: ATM510
Equipped with newly designed internal shock mounting for reduced handling and stage noise, this cardioid dynamic workhorse is designed for smooth, natural vocal reproduction. The microphone features super-durable construction for long-lasting performance, a rare-earth magnet for high output, and a multi-stage grille design for excellent protection against plosives. Its cardioid polar pattern reduces pickup of sounds from the sides and rear, maximizing isolation from other sound sources and minimizing feedback.
ELEMENT: Dynamic
POLAR PATTERN: Cardioid
FREQUENCY RESPONSE: 90-16,000 Hz
OPEN CIRCUIT SENSITIVITY: –55 dB (1.7 mV) re 1V at 1 Pa
IMPEDANCE: 300 ohms
WEIGHT: 258 g (9.1 oz)
DIMENSIONS: 170.0 mm (6.69") long,
53.7 mm (2.11") diameter
OUTPUT CONNECTOR: Integral 3-pin XLRM-type
ACCESSORIES FURNISHED: AT8470 Quiet-Flex™ stand clamp for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; soft protective pouch MORE»
| List | $99.00 |
Artist Series Hypercardioid Dy
Model: ATM610A
Tuned for clear, detailed, extended-range reproduction of lead and backup vocals, the premier Artist Series dynamic vocal mic is equipped with a rare-earth magnet, a tight hypercardioid polar pattern and multi-stage grille design. The microphone features a newly designed internal shock mount design to reduce handling and stage noise.
ELEMENT: Dynamic
POLAR PATTERN: Hypercardioid
FREQUENCY RESPONSE: 40-16,000 Hz
OPEN CIRCUIT SENSITIVITY: –55 dB (1.7 mV) re 1V at 1 Pa
IMPEDANCE: 300 ohms
WEIGHT: 270 g (9.5 oz)
DIMENSIONS: 177.0 mm (6.97") long,
48.0 mm (1.89") diameter
OUTPUT CONNECTOR: Integral 3-pin XLRM-type
ACCESSORIES FURNISHED: AT8470 Quiet-Flex™ stand clamp for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; soft protective pouch MORE»
| List | $149.00 |
Artist Series Hypercardioid Dy
Model: ATM650
This versatile addition to the Artist Series features a new multi-stage flat grille design for precise positioning close to the sound source. Equipped with a neodymium magnet for high-output performance, the ATM650 has a frequency response tailored for clear sound reproduction of guitar cabinets, snare and percussion. A-T’s innovative dual-wall floating construction banishes handling noise.
ELEMENT: Dynamic
POLAR PATTERN: Hypercardioid
FREQUENCY RESPONSE: 80-17,000 Hz
OPEN CIRCUIT SENSITIVITY: –56 dB (1.5 mV) re 1V at 1 Pa
IMPEDANCE: 300 ohms
WEIGHT: 279 g (9.8 oz)
DIMENSIONS: 164.2 mm (6.46") long,
38.8 mm (1.53") diameter
OUTPUT CONNECTOR: Integral 3-pin XLRM-type
ACCESSORIES FURNISHED: AT8470 Quiet-Flex™ stand clamp for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; soft protective pouch MORE»
| List | $99.00 |

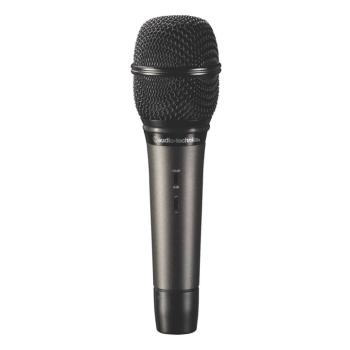

Cardioid Condenser Handheld Mi
Model: ATM710
The new Artist Series vocal condenser microphone is tailored for exacting detail and high-fidelity vocal reproduction. With a condenser design for studio-quality performance, the ATM710 delivers remarkable clarity. The microphone is equipped with an integral 80 Hz hi-pass filter that provides easy switching from a flat frequency response to a low-end roll-off position that reduces the microphone's sensitivity to popping in close vocal use. The ATM710 is also equipped with a switchable 10 dB pad that lowers the microphone's sensitivity, providing higher SPL capability. The microphone’s cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of the desired sound source.
ELEMENT: Fixed-charge back plate permanently polarized condenser
POLAR PATTERN: Cardioid
FREQUENCY RESPONSE: 40-20,000 Hz
LOW FREQUENCY ROLL-OFF: 80 Hz, 12 dB/octave
OPEN CIRCUIT SENSITIVITY: –40 dB (10.0 mV) re 1V at 1 Pa
IMPEDANCE: 200 ohms
MAXIMUM INPUT SOUND LEVEL: 148 dB SPL, 1 kHz at 1% T.H.D.
DYNAMIC RANGE (typical): 127 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO: 73 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS: 11-52V DC, 3.5 mA typical
SWITCHES: Flat, roll-off; 10 dB pad
WEIGHT: 274 g (9.7 oz)
DIMENSIONS: 179.0 mm (7.05") long,
50.0 mm (1.97") diameter
OUTPUT CONNECTOR: Integral 3-pin XLRM-type
ACCESSORIES FURNISHED: AT8470 Quiet-Flex™ stand clamp for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; soft protective pouch MORE»
| List | $219.00 |
