20 Series Cardioid Condenser I
Model: AT2021
Ideal for home studio and live applications, the low-profile AT2021 offers an extended frequency response, high maximum SPL and wide dynamic range. The microphone is outstanding for acoustic guitar, overheads, piano and group vocals. Its low-mass element offers a superb transient response.
ELEMENT: Fixed-charge back plate, permanently polarized condenser
POLAR PATTERN: Cardioid
FREQUENCY RESPONSE: 30-20,000 Hz
OPEN CIRCUIT SENSITIVITY: –39 dB (11.2 mV) re 1V at 1 Pa
IMPEDANCE: 250 ohms
MAXIMUM INPUT SOUND LEVEL: 145 dB SPL, 1 kHz at 1% T.H.D.
NOISE: 19 dB SPL
DYNAMIC RANGE (typical): 126 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO: 75 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS: 48V DC, 2 mA typical
WEIGHT: 83 g (2.9 oz)
DIMENSIONS: 101.5 mm (4.00") long,
21.0 mm (0.83") maximum body diameter
OUTPUT CONNECTOR: Integral 3-pin XLRM-type
ACCESSORIES FURNISHED: Stand clamp; soft protective pouch MORE»
| List | $89.00 |

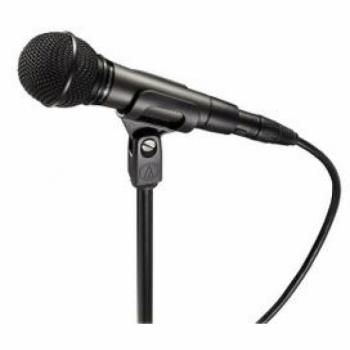

Artist Series Cardioid Dynamic
Model: ATM510
Equipped with newly designed internal shock mounting for reduced handling and stage noise, this cardioid dynamic workhorse is designed for smooth, natural vocal reproduction. The microphone features super-durable construction for long-lasting performance, a rare-earth magnet for high output, and a multi-stage grille design for excellent protection against plosives. Its cardioid polar pattern reduces pickup of sounds from the sides and rear, maximizing isolation from other sound sources and minimizing feedback.
ELEMENT: Dynamic
POLAR PATTERN: Cardioid
FREQUENCY RESPONSE: 90-16,000 Hz
OPEN CIRCUIT SENSITIVITY: –55 dB (1.7 mV) re 1V at 1 Pa
IMPEDANCE: 300 ohms
WEIGHT: 258 g (9.1 oz)
DIMENSIONS: 170.0 mm (6.69") long,
53.7 mm (2.11") diameter
OUTPUT CONNECTOR: Integral 3-pin XLRM-type
ACCESSORIES FURNISHED: AT8470 Quiet-Flex™ stand clamp for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; soft protective pouch MORE»
| List | $99.00 |

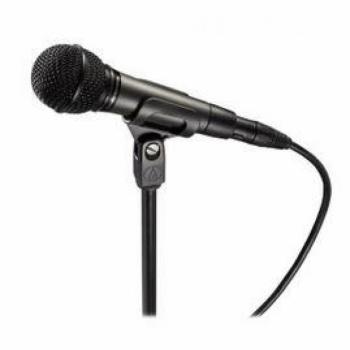

Artist Series Hypercardioid Dy
Model: ATM610A
Tuned for clear, detailed, extended-range reproduction of lead and backup vocals, the premier Artist Series dynamic vocal mic is equipped with a rare-earth magnet, a tight hypercardioid polar pattern and multi-stage grille design. The microphone features a newly designed internal shock mount design to reduce handling and stage noise.
ELEMENT: Dynamic
POLAR PATTERN: Hypercardioid
FREQUENCY RESPONSE: 40-16,000 Hz
OPEN CIRCUIT SENSITIVITY: –55 dB (1.7 mV) re 1V at 1 Pa
IMPEDANCE: 300 ohms
WEIGHT: 270 g (9.5 oz)
DIMENSIONS: 177.0 mm (6.97") long,
48.0 mm (1.89") diameter
OUTPUT CONNECTOR: Integral 3-pin XLRM-type
ACCESSORIES FURNISHED: AT8470 Quiet-Flex™ stand clamp for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; soft protective pouch MORE»
| List | $149.00 |

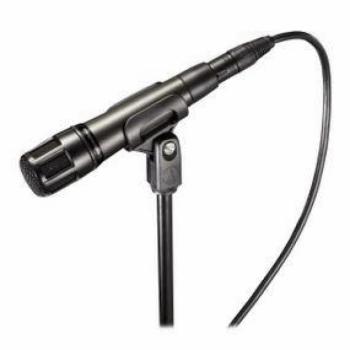

Artist Series Hypercardioid Dy
Model: ATM650
This versatile addition to the Artist Series features a new multi-stage flat grille design for precise positioning close to the sound source. Equipped with a neodymium magnet for high-output performance, the ATM650 has a frequency response tailored for clear sound reproduction of guitar cabinets, snare and percussion. A-T’s innovative dual-wall floating construction banishes handling noise.
ELEMENT: Dynamic
POLAR PATTERN: Hypercardioid
FREQUENCY RESPONSE: 80-17,000 Hz
OPEN CIRCUIT SENSITIVITY: –56 dB (1.5 mV) re 1V at 1 Pa
IMPEDANCE: 300 ohms
WEIGHT: 279 g (9.8 oz)
DIMENSIONS: 164.2 mm (6.46") long,
38.8 mm (1.53") diameter
OUTPUT CONNECTOR: Integral 3-pin XLRM-type
ACCESSORIES FURNISHED: AT8470 Quiet-Flex™ stand clamp for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; soft protective pouch MORE»
| List | $99.00 |
